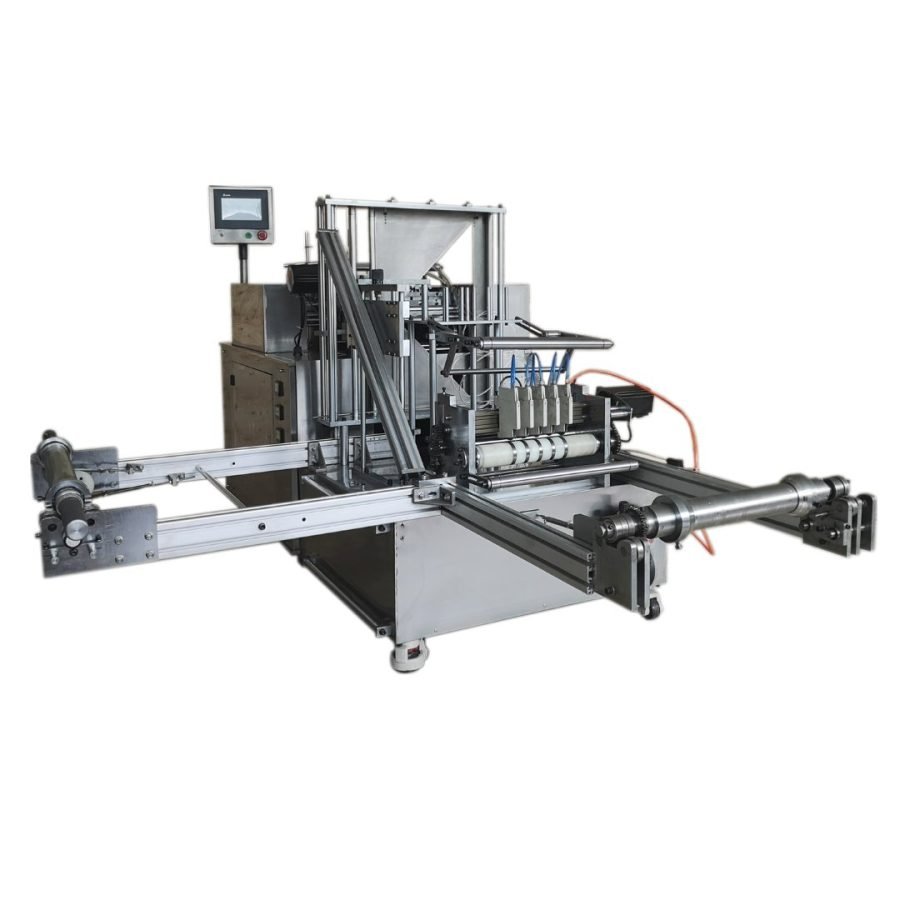

YF-04000S-8 Alcohol Pad Machine
Feature:High Level High Speed
Speed:800-1200pcs/min
Packaging size:L50mm( range40-80)*W50mm
Warranty of core components:1 Year
- tel : +86-13456396879
- WhatsApp:+86-13456396879
- email : yoyo@chinayftj.com
Application
The Packing Machine YF-04000S-8 is the solution for producing alcohol prep pad, lt is our company independent research &development & production equipment.Horizontal model design.PLC & touch screen control, safe and stable, easy to operate.high production efficiency: can reach 100-150 cutting/minute.
Feature

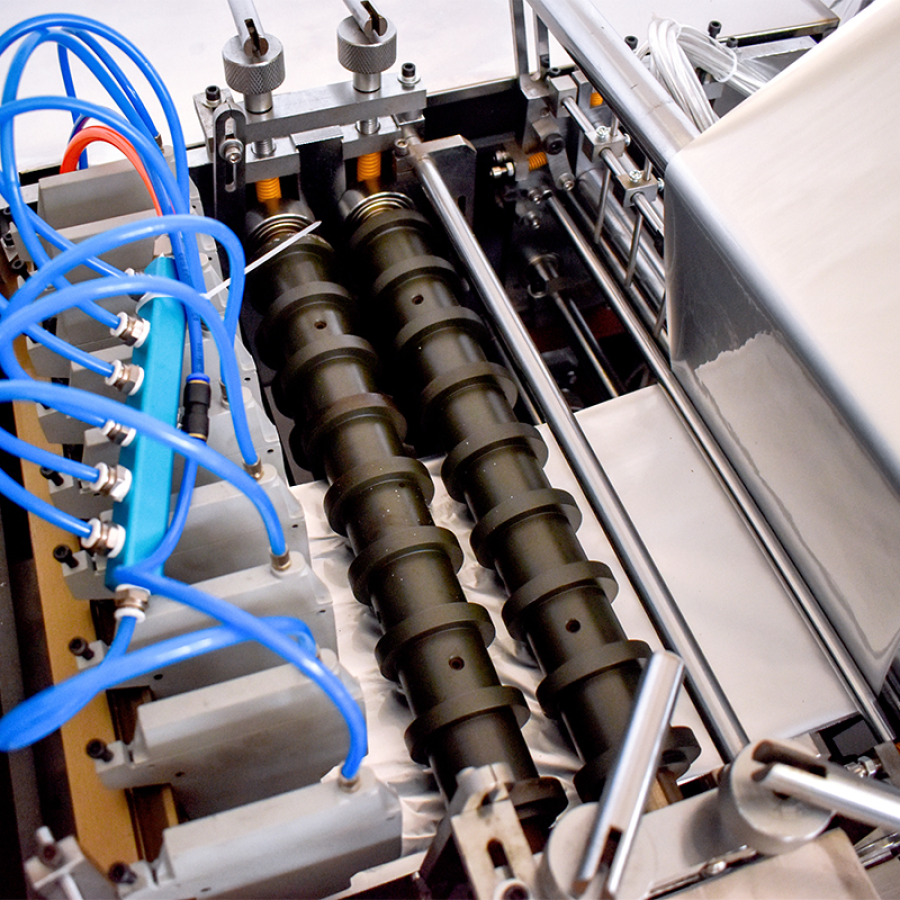

1. Horizontal-type model design, and continuous roller sealing.

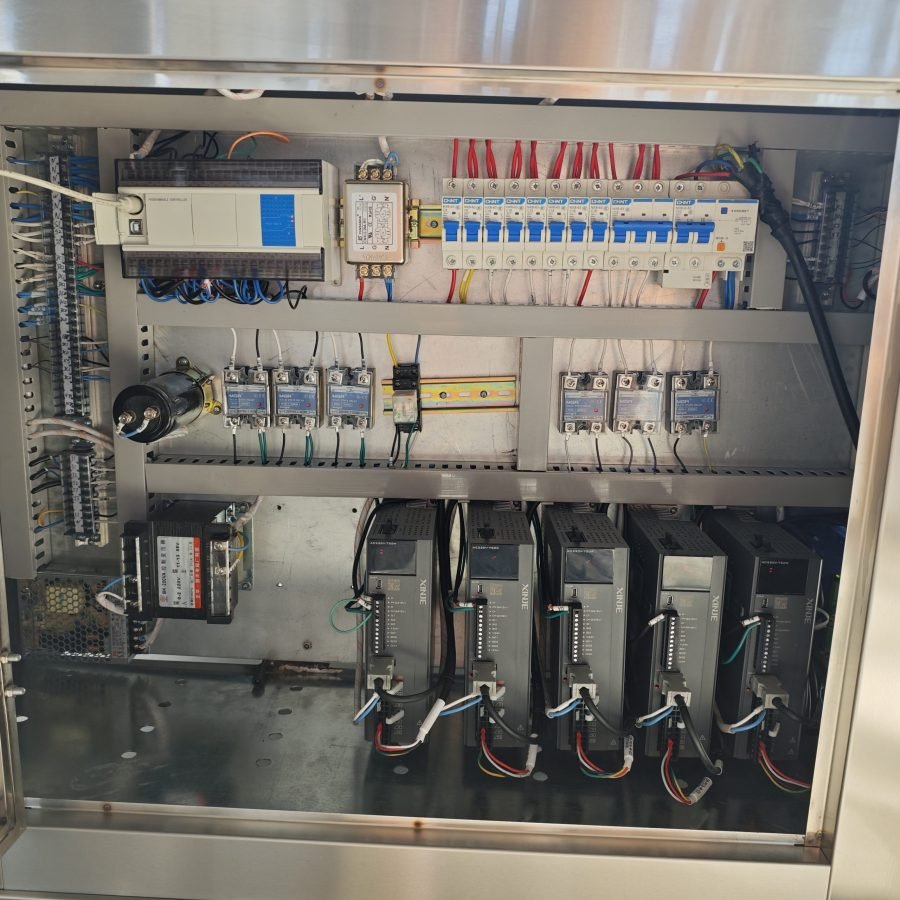

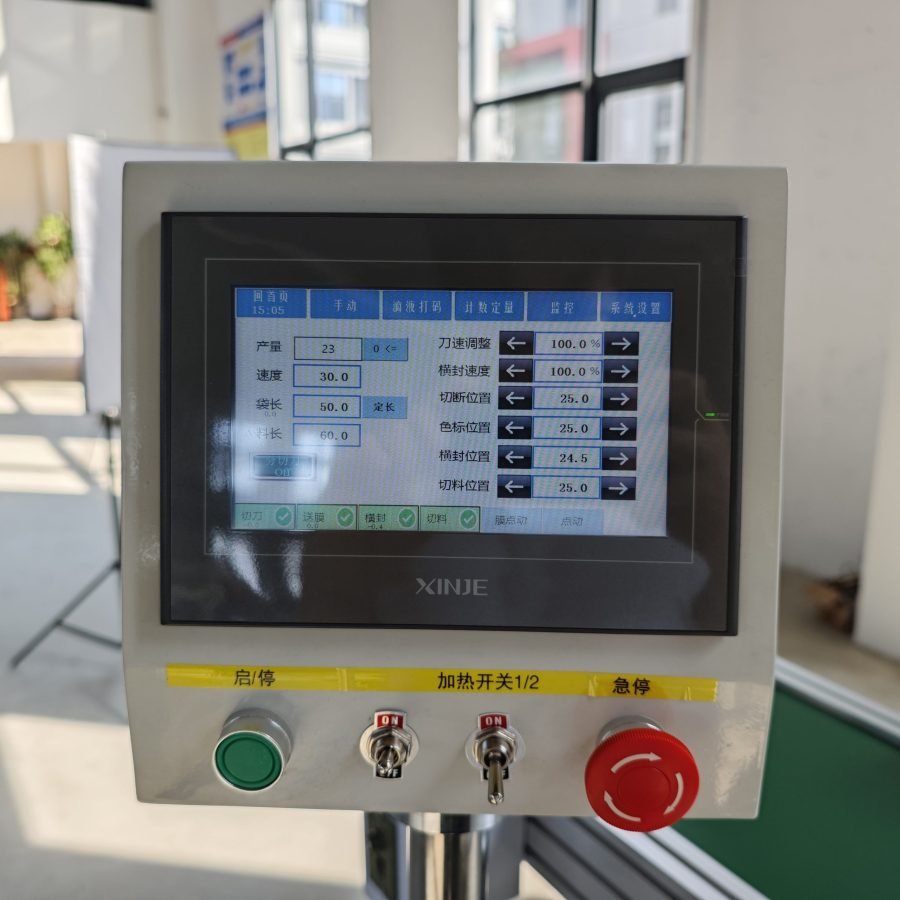

2. Full touch screen + PLC control, convenient to control, safe and stable.
3. The temperature of heat sealing can be adjusted freely.
4. The length of cotton sheet is also freely adjusted.

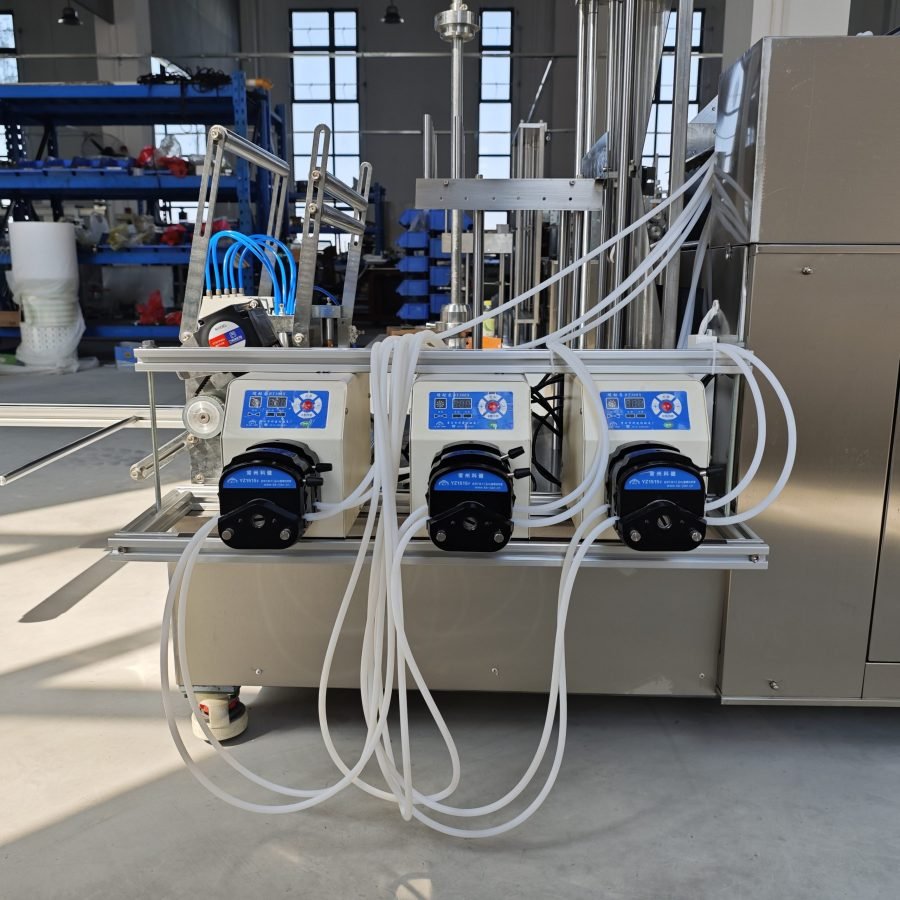

5. Packing speed, pkt size, liquid injection volume can be easily adjusted.
6. Adopt motion controller multi-axis servo motor linkage control technology.
MAIN TECHNICAL PARAMETER | ||
| MODEL | YF-04000S 8 LANES | YF-04000S 10 LANES |
| Speed / Capacity | 800-1440Pcs/Min | 1000-1800Pcs/Min |
| Total Power | 6 KW | 6 KW |
| Voltage | 220V Single-Phase voltage 220V | |
| Servo Motors | 6Pcs | 6Pcs |
| Weight | About 1000KG | About 1000KG |
| Dimensions | 3500 × 1800 × 1500mm | 3500 × 1800 × 1500mm |
| Bag Sealing Type | Four Sides Sealing | |
| Folding Method | Non-woven cloth folded one time,two layers or no folded | |
| Packing Material | Paper aluminum plastic compound film (other packing materials are customized upon require) | |
| Packaging size | L50mm(adjustable range40-80mm) * W(50mm) | |
| Liquid Range | Accurate amount can be adjusted 0.20-6.00g/bag | |
| Suitable wet pad Roll (Outer Dia) | Roll, Diameter≤1000mm | |
| Suitable Packing Roll (Outer Dia) | Roll, Diameter≤450mm | |
| Inner Diameter of raw paper tube | 3 inch ( ≈76mm) | |
