YF-0350s single Wet wipes Machine
Feature:High Level High Speed
Speed: 300-350Pcs/Min
Pack size length:≤ 60-220 mm
Pack size width:≤ 30-110mm
- tel : +86-13456396879
- WhatsApp:+86-13456396879
- email : yoyo@chinayftj.com
Application

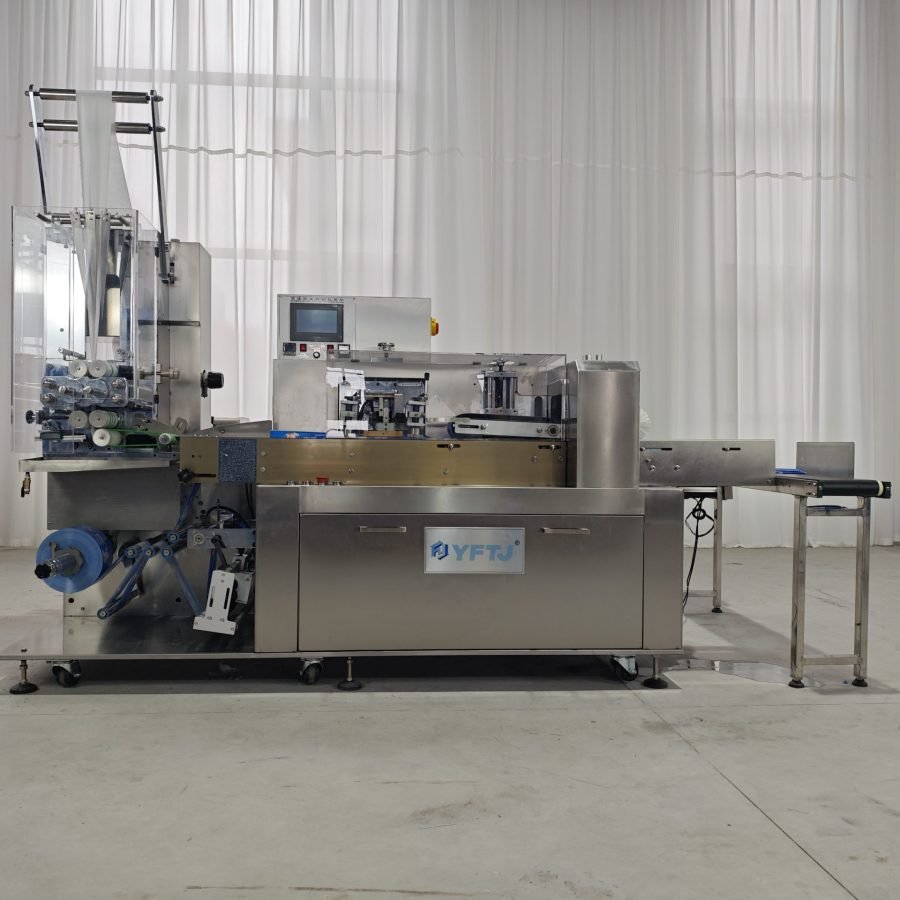

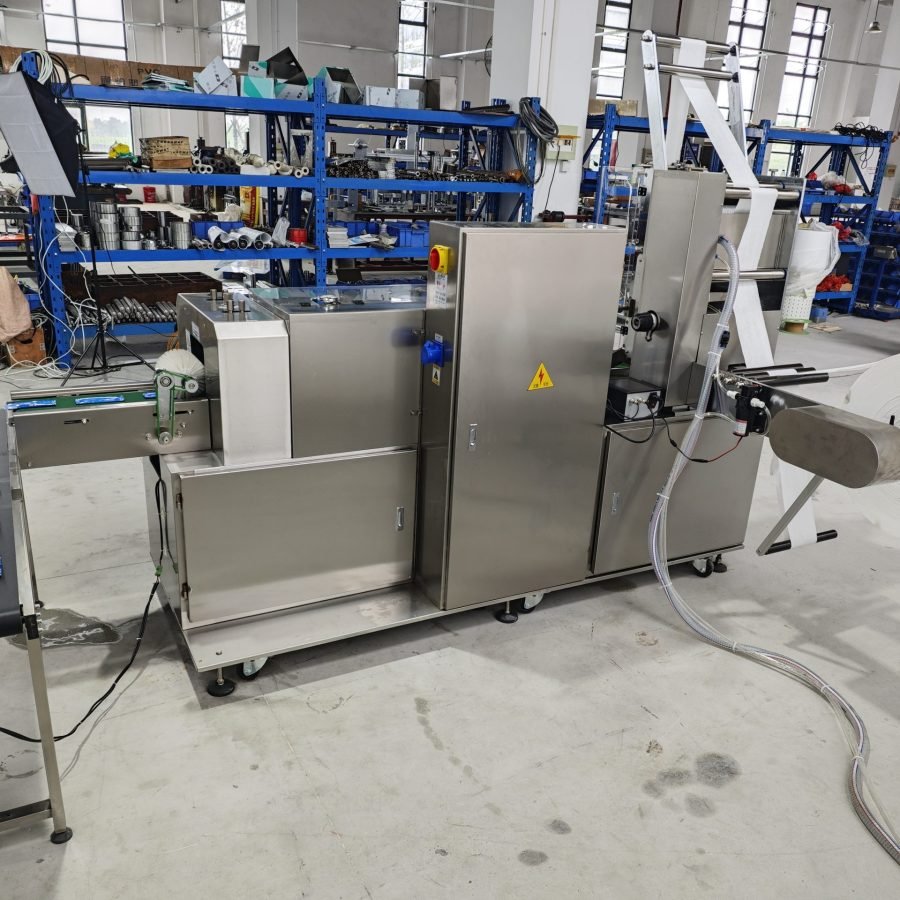

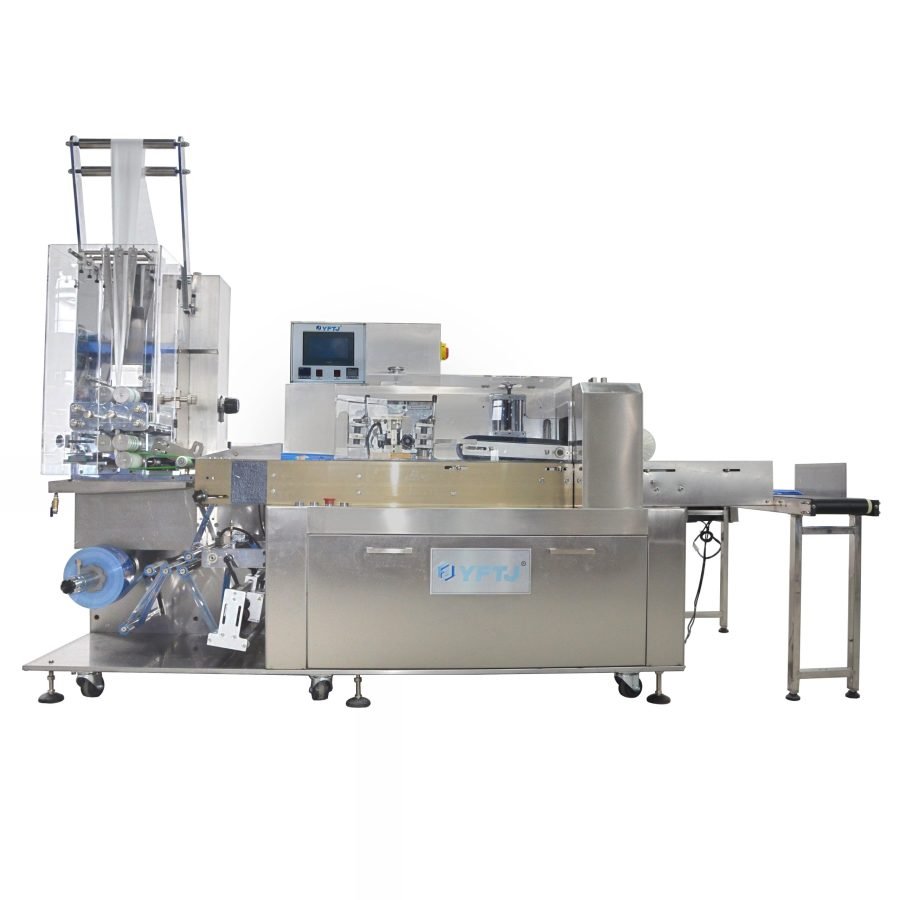

YF-0350S Machine is suitable for the production of three side sealing (back seal) wet towel of various sizes, this machine is made of 304 stainless steel, corrosion-resistant, no rust. Horizontal model design, PLC & full touch screen control, safe and stable, easy to operate, high productivity: speed up to 250 -350 pcs/min.
Feature

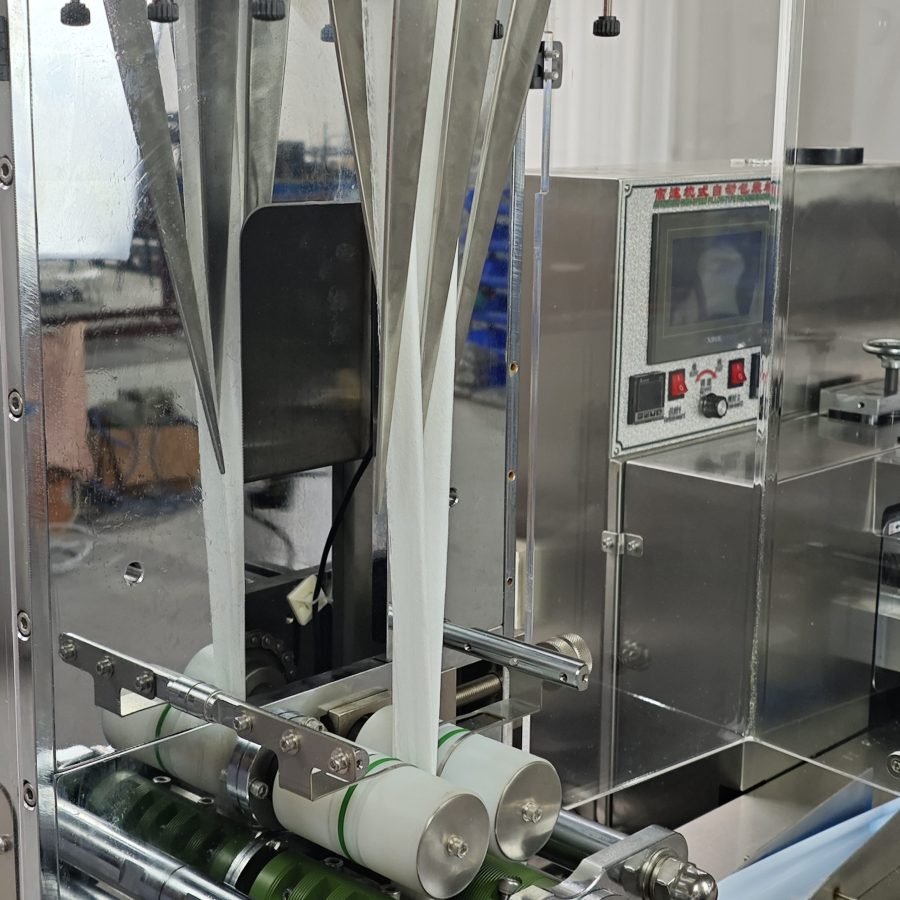

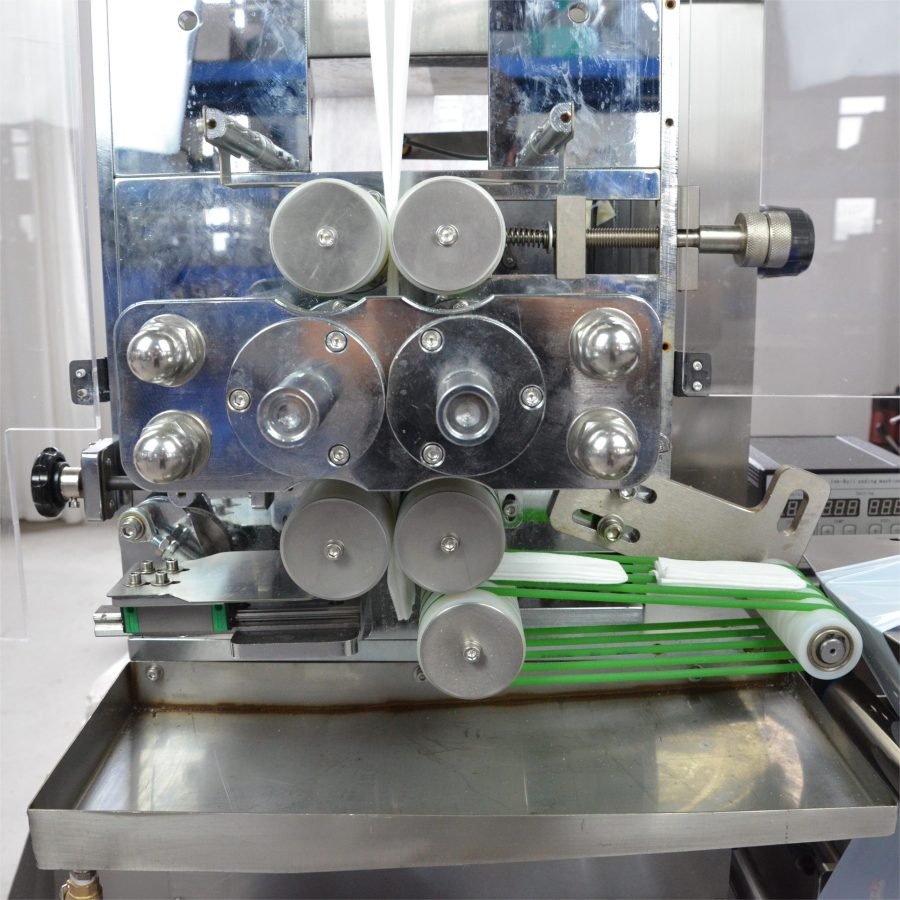

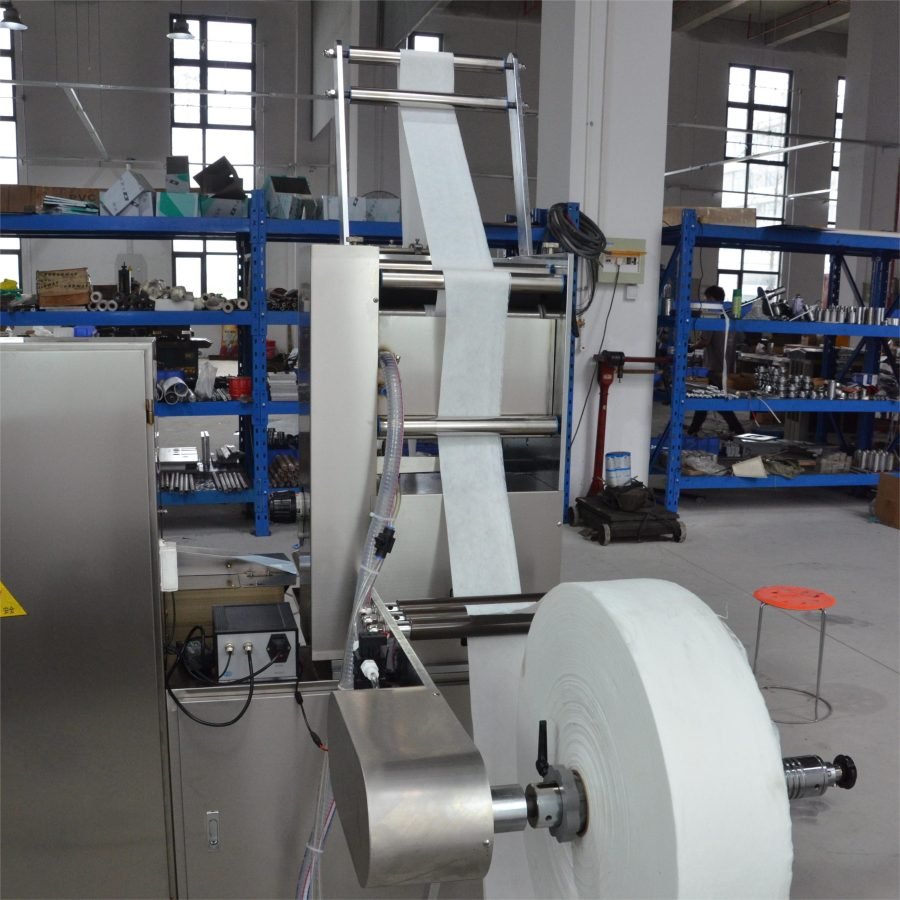

1. Fully automatic to complete the folding/humidifying/slitting non woven fabrics.
2. Printing of production date function is available.
3. The whole machine touch screen computer control to adjust the parameters,

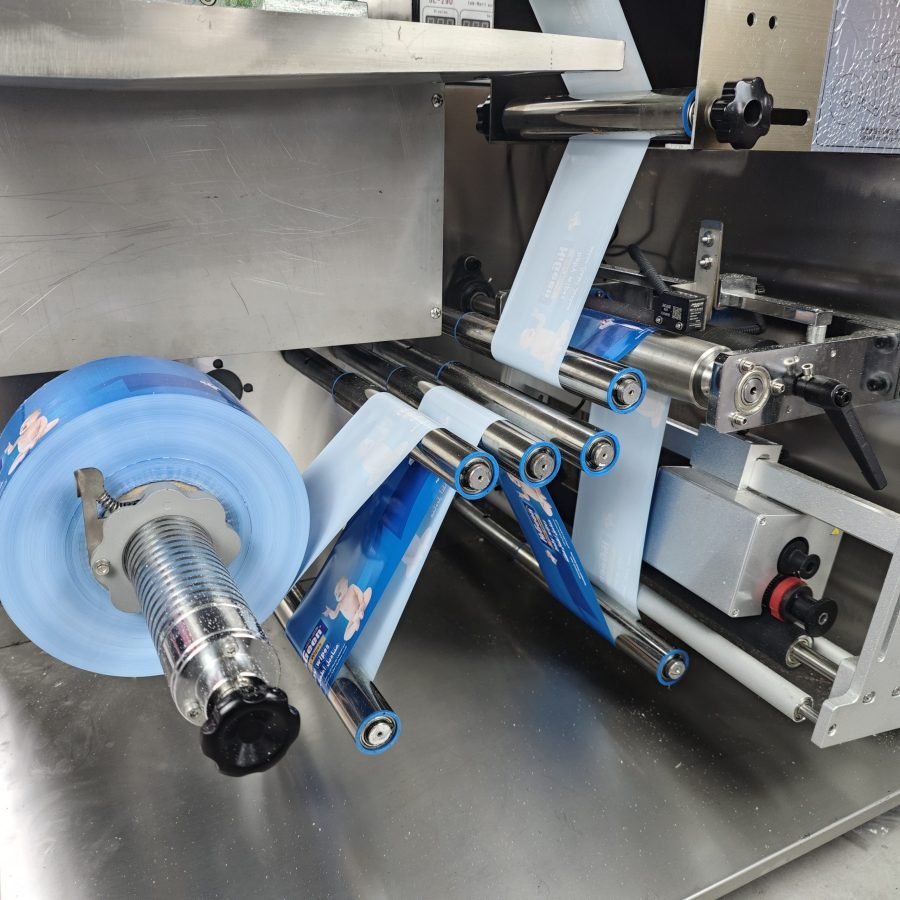

4. Two systems for film change color-code tracking and bag length sizing, with automatic selection switching according to demand.

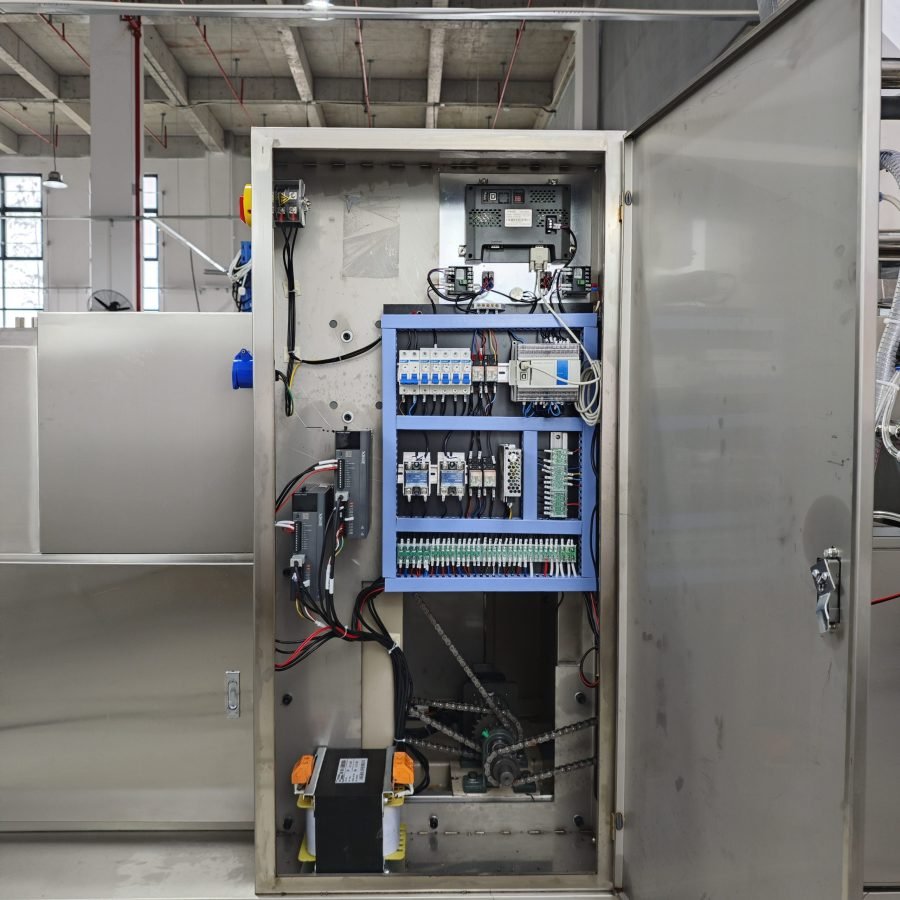

5. Multi-axis servo control for precise positioning, low energy consumption, higher degree of intelligence, simple operation and easy maintenance.
| MAIN TECHNICAL PARAMETER | |
| MODEL | YF-0350S |
| Speed / Capacity | 300-350Pcs/Min |
| Total Power | 3.5 KW |
| Voltage | Single-Phase voltage 220V |
| Servo Motors | 4 Pcs |
| Weight | About 1100KG |
| Dimensions | 2900×1800×2000mm |
| Pouch Sealing Type | Three Sides Sealing (Back Sealing) |
| Packing Material | Aluminum-Plastic composite film, OPP heat sealing film (Customization) |
| Packaging Pouch size | Length : ≤60-220 mm Width : ≤ 30-110mm |
| Suitable Packing Roll (Outer Dia) | Roll, Diameter≤350mm |
| Suitable Non Woven Roll (Outer Dia) | Roll, Diameter≤1200mm |
| Inner Diameter of raw paper tube | 3 inch (≈76mm) |
